Product Details:
Place of Origin: Anhui, China
Brand Name: HUISN
Model Number: WMD30VB
Payment & Shipping Terms:
Price: $1,313.00/Cubic Meters 1-9 Cubic Meters
Packaging Details: (1)plywood<br>(2)carton
Supply Ability: 100 Set/Sets per Month

HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color

Description
Table Travel (X) (mm): 540 Number Of Axes: 3
Machining Capacity: Medium Duty Table Travel (Y) (mm): 220
Table Travel (Z) (mm): 370 Spindle Taper: MT3
Range Of Spindle Speed(r.p.m): 50 - 3000 R.p.m Condition: New
Table Travel (mm): 540*220mm Type: VERTICAL
Spindle Motor Power(kW): 1.5KW Voltage: 220V
Dimension(L*W*H): 1160*720*1120mm Weight (KG): 260
Warranty: 1 Year Key Selling Points: High-accuracy
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Energy & Mining Showroom Location: None
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, PLC, Pressure Vessel, Engine Product Name: Drilling Milling Machines WMD30VB
Keyword: Milling Machines With Dro Max Drilling Capacity: 30mm
Table Size: 840*210mm T Slot Size: 3*12 Mm
Packing Size: 1000*750*1100mm Plug: Can Be Customer's Request
After-sales Service Provided: Video Technical Support After Warranty Service: Video Technical Support
Port: ShangHai Sea Port

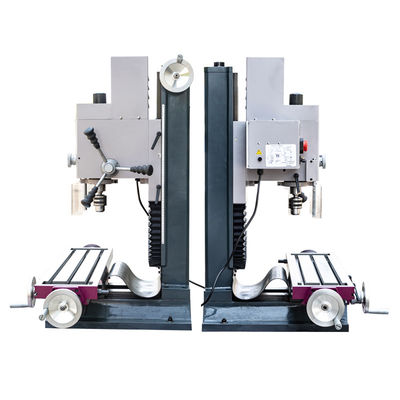

WMD30VB Drilling and Milling Machine with 3 axis dro
It is used for school , science innovation center and science researching institution teaching demonstration

It is suitable for home use DIY, airplane model accessories and clocks & watches accessories processing.

It can process Ti, stainless steel, 45 steel, iron, aluminium, copper------all kinds of nonferrous metal and wood, nylon-----all
kinds of soft materials.
Delivery Cost:
Please noted, Page prices are not included shipping cost. If you wanna know, please contact our sale and give us your address details and zip code (post code). We will give you at once.
Max Drilling Capacity
30mm
Max Face Milling Capacity
76mm
Table Size
840*210mm
Spindle Taper
MT3
Cross Travel
540 mm
Longitudinal Travel
220 mm
Vertical Travel
370 mm
Spindle Travel
75 mm
T Slot Size
3*12 mm
Spindle Speed
50-3000rpm
Headstock Tilt Left and Right
±90°
Distance From Spindle to Column
201mm
Distance From Spindle to Table
45-300mm
Motor
1.5KW/220V
G.W
260kg
Packing Size
1000*750*1100mm
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 0
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 2
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 4
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 6
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 8
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 10
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 12
Standard Accessories:
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 14
Optional Accessories: Click each one to get more information
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 16
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 18
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 20
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 22
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 24
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 26
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 28
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 30
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 32
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 34
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 36
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 38
HUISN WMD30VB Column Metal Milling Machine Metal Milling MachMini Manual Metal Drilling Machine with DRO in Sliver Color 40
Q1:What is your MOQ?
MOQ is 1 pcs enough.

Q2: How long can I get the machines?
If we have stock, we will send you that day after you payed.

Q3: What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q4: Payment term?
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q5: .How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

Q6: If i can't know how to operate,can your engineer help me programme well on machine ?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
