380V Voltage Steel Pipes Making Milling Machine For Metal

380V Voltage Steel Pipes Making Milling Machine For Metal
380V Voltage Steel Pipes Making Milling Machine For Metal 380V Voltage Steel Pipes Making Milling Machine For Metal 380V Voltage Steel Pipes Making Milling Machine For Metal 380V Voltage Steel Pipes Making Milling Machine For Metal 380V Voltage Steel Pipes Making Milling Machine For Metal 380V Voltage Steel Pipes Making Milling Machine For Metal

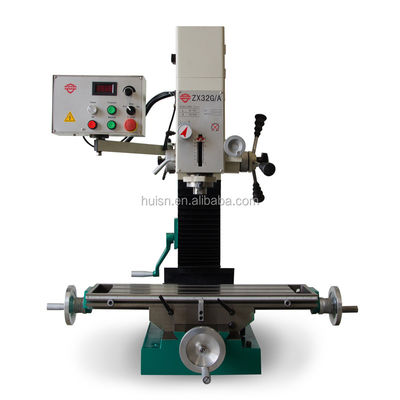

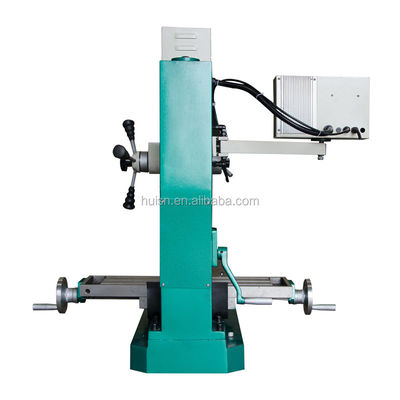

Large Image :  380V Voltage Steel Pipes Making Milling Machine For Metal

Product Details:
Place of Origin: Anhui, China
Brand Name: HUISN
Certification: CE ISO
Model Number: ZX32G/A
Payment & Shipping Terms:
Price: $1,400.00 - $2,000.00/Pieces
Packaging Details: 1piece/wooden box,30pieces/40'HQ<br>380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal<br>Email:export2(at)huisn.cn
Supply Ability: 500 Piece/Pieces per Month Different model different capacity

380V Voltage Steel Pipes Making Milling Machine For Metal

Description
Condition: New Type: Horizontal
Voltage: 220/380V Dimension(L*W*H): 1050mm*1090mm*700mm
Warranty: 1 Year Weight: 210kg
After-sales Service Provided: No Overseas Service Provided Power: 750w
CNC Or Not: Normal Name: 380V Voltage And ISO9001 Steel Pipes Making Milling Machine For Metal
Max Drilling Capacity: 32mm Max Face Milling Capacity: 63mm
Max Tapping Capacity: M16 Color: Custom-made
Machine Type: Horizontal Drilling Milling Machine Function: Machining
Spindle Speed: 95-1420rpm Precision: High Speed Precison
Spindle Taper: MT3 Port: Shanghai Or Ningbo

1.380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal


2. Manufacturer Directly Supply from China.


3. Mini Lathe size,home and Family use.


4. CE certificates,Variable Speed,Brushless Motor.


5.Milling Machine with DRO(Digital Read Out).


380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal

ZX32G
ZX32G/A
Max.drilling capacity
32mm
32mm
Max.tapping capacity
16mm
16mm
Max.face milling capacity
63mm
63mm
Table size
700X190mm
700X190mm(Rotary table)
Spindle taper
MT3/R8
MT3/R8
Cross travel
190mm
190mm
Longitudinal travel
320mm
320mm
Vertical travel
310mm
MT3/R8
Spindle stroke
75mm
75mm
T Slot size
12mm
12mm
Spidle speed
60-1650rpm
60-1650rpm
Headstock tilt left and right
90°
90°
Column size
150X130X690
150X130X690
Stand size
550X340
550X340
Distance from spindle to column
320mm
320mm
Max.distance from spinde to table
400mm
400mm
Power
900W
900W
N.W/G.W
170/200 kg
170/200 kg
380V Voltage Steel Pipes Making Milling Machine For Metal 0
380V Voltage Steel Pipes Making Milling Machine For Metal 2
380V Voltage Steel Pipes Making Milling Machine For Metal 4

Main Features

1) Big Motor Power,can Drilling and Milling Wood,Plastic and Steel.

2) Medium Size,easy to packing and shipping.

3) High quality,CE and ISO9001 Certificates.

4) Manufacturer Directly Supply,Competitive Price Supplied.

5) Cast Iron Material.

6) Milling Machine with DRO

Certifications
380V Voltage Steel Pipes Making Milling Machine For Metal 6
380V Voltage Steel Pipes Making Milling Machine For Metal 8
380V Voltage Steel Pipes Making Milling Machine For Metal 10
380V Voltage Steel Pipes Making Milling Machine For Metal 12
Anhui Weiss Profile
380V Voltage Steel Pipes Making Milling Machine For Metal 14

Factory Location

Anhui Weiss Electromechanic Co.,Ltd. located in Chizhou City,Anhui Province PRC.Near Shanghai and Ningbo,have a convenient transportaion,such as CRH,Jiuhuashan Airport,Ships and many highways.

Factory Deatails

Anhui Weiss Electromechanic Co.,Ltd. established in 2008,at present have 60 workers,the size of factory are still expanding.
We are a manufacturer of Mini Lathe,Drilling & Milling Machine,CNC Lathe,CNC Milling,Belt Grinder Machine.
All our products passed CE and ISO9001 Certificates.



380V Voltage Steel Pipes Making Milling Machine For Metal 16
380V Voltage Steel Pipes Making Milling Machine For Metal 18

Machine Export

Our Lathe,Milling,Drilling and Belt Grinder Machine are hot sale in USA,European,South American and Midlle east Market for 10 years,we have many dealers in these markets,welcome to be our new dealers if you are interested.
380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal

Packing & Delivery
380V Voltage Steel Pipes Making Milling Machine For Metal 20
Milling&Drilling Packaging
Size
110 (L) * 110 (W) * 71 (D)
Weight
200kg

Packaging Details
1Piece/Wooden Box

380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal
380V Voltage Steel Pipes Making Milling Machine For Metal 22
Container Packaging
Size
40'' HQ
Weight
14000kg(without container)
Packaging Details



70Piece/Container

380V Voltage and ISO9001 Steel Pipes Making Milling Machine for Metal
