WM210V-L new design metal working manual bench mini price lathe machine for sale

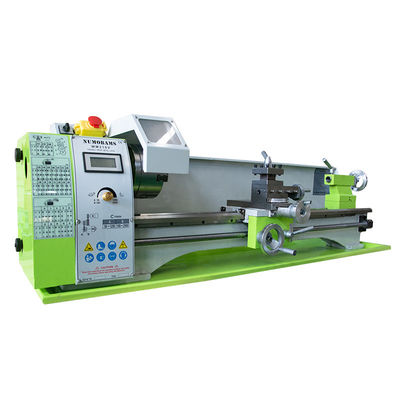

Large Image : WM210V-L new design metal working manual bench mini price lathe machine for sale

Product Details:

Place of Origin:	Anhui, China
Brand Name:	Huisn
Model Number:	WM210V-L

Payment & Shipping Terms:

Price:	$704.00/Pieces 1-4 Pieces
Packaging Details:	wooden packing

Contact Now

WM210V-L new design metal working manual bench mini price lathe machine for sale

Description

Condition:	New	Max. Length Of Workpiece (mm):	800
Range Of Spindle Speed(r.p.m):	50 - 2500 R.p.m	Machining Capacity:	Medium Duty
Spindle Bore(mm):	38	Max. Turned Length (mm):	800 Mm
Type:	Horizontal	Spindle Motor Power(kW):	0.75
Voltage:	220V	Weight (KG):	90 KG
Warranty:	1 Year	Key Selling Points:	Competitive Price
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Home Use, Retail	Showroom Location:	None
Marketing Type:	Hot Product 2021	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Bearing, Pump, Motor, Gearbox, PLC, Pressure Vessel, Engine	Automatic Grade:	Manual
Name:	WM210V-L	Machine Type:	Horizontal Normal Lathe
Precision:	Precision	Spindle Bore:	38mm
Spindle Taper:	MT5	Max Swing Over Bed:	210
Motor:	750w	After-sales Service Provided:	Video Technical Support
After Warranty Service:	Video Technical Support

WM210V-L new design metal working manual bench mini price lathe machine for sale 0

Model	Specifications	Parameters
WM180V (Brush motor) (Brushless motor)	Swing Over Bed	180 mm
	Swing Over Cross Slide	110 mm
	Distance Between Centers	300 mm
	Width of Bed	100 mm
	Spindle Bore	21 mm
	Spindle Taper	MT3
	Number of Spindle Speeds	Variable
	Range of Spindle Speeds	50-2500 rpm
	Number of Metric Threads	10
	Range of Metric Threads	0.5-3 mm
	Number of Imperial Threads	8
	Range of Imperial Threads	8-44 T.P.I
	Range of Longitudinal Feed	0.1-0.2mm/R
	Tool Post Type	4
	Tailstock Taper	MT2
	Max Cross Slide Travel	276mm
	Max Compoud Slide Travel	75mm
	Max Carriage Travel	55mm
	Motor	220V 550W
	N/W G/W	70kg/105kg
	Packing Size	800450450 mm

Model	Specifications	Parameters
WM210V (Brush motor) (Brushless motor)	Swing Over Bed	210 mm
	Swing Over Cross Slide	140 mm
	Distance Between Centers	400 mm
	Width of Bed	100 mm
	Spindle Bore	21 mm
	Spindle Taper	MT3
	Number of Spindle Speeds	Variable
	Range of Spindle Speeds	50-2500 rpm
	Number of Metric Threads	10
	Range of Metric Threads	0.5-3 mm
	Number of Imperial Threads	8
	Range of Imperial Threads	8-44 T.P.I
	Range of Longitudinal Feed	0.1-0.2mm/R
	Tool Post Type	4
	Tailstock Taper	MT2
	Max Cross Slide Travel	55mm
	Max Compoud Slide Travel	75mm
	Max Carriage Travel	376mm
	DC Motor	220V 550W
	N/W G/W	75kg/110kg
	Packing Size	900450450 mm

Model	Specifications	Parameters
WM210V-S (Brush motor) (Brushless motor)	Swing Over Bed	210 mm
	Swing Over Cross Slide	140 mm
	Distance Between Centers	400 mm
	Width of Bed	100 mm
	Spindle Bore	38 mm
	Spindle Taper	MT5
	Number of Spindle Speeds	Variable
	Range of Spindle Speeds	50-2500 rpm
	Number of Metric Threads	14
	Range of Metric Threads	0.3-3 mm
	Number of Imperial Threads	10
	Range of Imperial Threads	10-44 T.P.I
	Range of Longitudinal Feed	0.08-0.19mm/R
	Tool Post Type	4
	Tailstock Taper	MT2
	Max Cross Slide Travel	55mm
	Max Compoud Slide Travel	75mm
	Max Carriage Travel	376mm
	DC Motor	220V 750W
	N/W G/W	80kg/115kg
	Packing Size	900450450 mm

Model	Specifications	Parameters
WM210V-L (Brush motor) (Brushless motor)	Swing Over Bed	210 mm
	Swing Over Cross Slide	140 mm
	Distance Between Centers	800 mm
	Width of Bed	100 mm
	Spindle Bore	38 mm
	Spindle Taper	MT5
	Number of Spindle Speeds	Variable
	Range of Spindle Speeds	50-2500 rpm
	Number of Metric Threads	14
	Range of Metric Threads	0.3-3 mm
	Number of Imperial Threads	10
	Range of Imperial Threads	10-44 T.P.I
	Range of Longitudinal Feed	0.08-0.19mm/R
	Tool Post Type	4
	Tailstock Taper	MT2
	Max Cross Slide Travel	55mm
	Max Compoud Slide Travel	75mm
	Max Carriage Travel	776mm
	DC Motor	220V 750W
	N/W G/W	94kg/130kg
	Packing Size	1300450450 mm

Model	Specifications	Parameters
WM210V-G (Brush motor) (Brushless motor)	Swing Over Bed	210 mm
	Swing Over Cross Slide	140 mm
	Distance Between Centers	400 mm
	Width of Bed	100 mm
	Spindle Bore	21 mm
	Spindle Taper	MT3
	Number of Spindle Speeds	Variable
	Range of Spindle Speeds	50-2500 rpm
	Number of Metric Threads	10
	Range of Metric Threads	0.5-3 mm
	Number of Imperial Threads	8
	Range of Imperial Threads	8-44 T.P.I
	Range of Longitudinal Feed	0.09-0.19mm/R
	Tool Post Type	4
	Tailstock Taper	MT2
	Max Cross Slide Travel	55mm
	Max Compoud Slide Travel	75mm
	Max Carriage Travel	366mm
	DC Motor	220V 550W
	N/W G/W	80kg/115kg
	Packing Size	900450450 mm

If need further information, pls feel free to contact us.

WM210V-L new design metal working manual bench mini price lathe machine for sale 5

WM210V-L new design metal working manual bench mini price lathe machine for sale 8

Q1:What is your MOQ?

MOQ is 1 pcs enough.

Q2: How long can I get the machines?

If we have stock, we will send you that day after you payed.

Q3: What is the package? Is it suitable for shipment?

Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

Q4: Payment term?

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q5: .How' s your after-sale service?

Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 48 hrs upon registering your need.

Q6: If i can't know how to operate,can your engineer help me programme well on machine ?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into
U-disc of operation video to help you.
