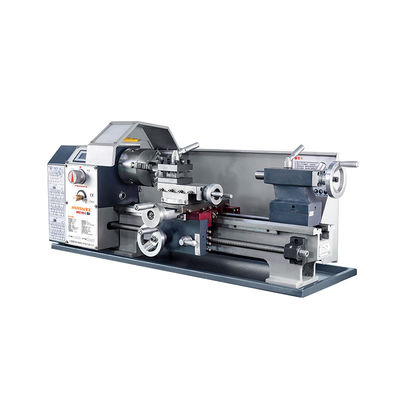

Large Image :  Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual

Product Details:
Place of Origin: Anhui, China
Brand Name: Huisn
Model Number: WM210V-G
Payment & Shipping Terms:
Price: $797.00/Pieces 1-4 Pieces
Packaging Details: wooden packing

Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual

Description
Condition: New Max. Length Of Workpiece (mm): 400
Range Of Spindle Speed(r.p.m): 50 - 2500 R.p.m Machining Capacity: Medium Duty
Spindle Bore(mm): 21 Max. Turned Length (mm): 400 Mm
Type: Horizontal Spindle Motor Power(kW): 0.55
Voltage: 220V Weight (KG): 80 KG
Warranty: 1 Year Key Selling Points: Competitive Price
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use, Retail Showroom Location: None
Marketing Type: Hot Product 2021 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Motor, Gearbox, PLC, Pressure Vessel, Engine Automatic Grade: Manual
Name: WM210V-G Machine Type: Horizontal Normal Lathe
Precision: Precision Spindle Bore: 21mm
Spindle Taper: MT3 Max Swing Over Bed: 210
Motor: 550w After-sales Service Provided: Video Technical Support
After Warranty Service: Video Technical Support





Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 0Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 1Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 2Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 3Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 4

Model Specifications Parameters
WM180V (Brush motor)
(Brushless motor)
Swing Over Bed 180 mm
Swing Over Cross Slide 110 mm
Distance Between Centers 300 mm
Width of Bed 100 mm
Spindle Bore 21 mm
Spindle Taper MT3
Number of Spindle Speeds Variable
Range of Spindle Speeds 50-2500 rpm
Number of Metric Threads 10
Range of Metric Threads 0.5-3 mm
Number of Imperial Threads 8
Range of Imperial Threads 8-44 T.P.I
Range of Longitudinal Feed 0.1-0.2mm/R
Tool Post Type 4
Tailstock Taper MT2
Max Cross Slide Travel 276mm
Max Compoud Slide Travel 75mm
Max Carriage Travel 55mm
Motor 220V  550W
N/W  G/W 60kg/70kg
Packing Size 800*450*450 mm

Model Specifications Parameters
WM210V (Brush motor)
(Brushless motor)
Swing Over Bed 210 mm
Swing Over Cross Slide 140 mm
Distance Between Centers 400 mm
Width of Bed 100 mm
Spindle Bore 21 mm
Spindle Taper MT3
Number of Spindle Speeds Variable
Range of Spindle Speeds 50-2500 rpm
Number of Metric Threads 10
Range of Metric Threads 0.5-3 mm
Number of Imperial Threads 8
Range of Imperial Threads 8-44 T.P.I
Range of Longitudinal Feed 0.1-0.2mm/R
Tool Post Type 4
Tailstock Taper MT2
Max Cross Slide Travel 55mm
Max Compoud Slide Travel 75mm
Max Carriage Travel 376mm
DC Motor 220V  550W
N/W  G/W 75kg/80kg
Packing Size 900*450*450 mm

Model Specifications Parameters
Improved WM210V (Brush motor)
(Brushless motor)
Swing Over Bed 210 mm
Swing Over Cross Slide 140 mm
Distance Between Centers 400 mm
Width of Bed 100 mm
Spindle Bore 38 mm
Spindle Taper MT5
Number of Spindle Speeds Variable
Range of Spindle Speeds 50-2500 rpm
Number of Metric Threads 14
Range of Metric Threads 0.3-3 mm
Number of Imperial Threads 10
Range of Imperial Threads 10-44 T.P.I
Range of Longitudinal Feed 0.1-0.2mm/R
Tool Post Type 4
Tailstock Taper MT2
Max Cross Slide Travel 55mm
Max Compoud Slide Travel 75mm
Max Carriage Travel 376mm
DC Motor 220V  750W
N/W  G/W 80kg/85kg
Packing Size 900*450*450 mm

Model Specifications Parameters
Length WM210V (Brush motor)
(Brushless motor)
Swing Over Bed 210 mm
Swing Over Cross Slide 140 mm
Distance Between Centers 800 mm
Width of Bed 100 mm
Spindle Bore 38 mm
Spindle Taper MT5
Number of Spindle Speeds Variable
Range of Spindle Speeds 50-2500 rpm
Number of Metric Threads 14
Range of Metric Threads 0.3-3 mm
Number of Imperial Threads 10
Range of Imperial Threads 10-44 T.P.I
Range of Longitudinal Feed 0.1-0.2mm/R
Tool Post Type 4
Tailstock Taper MT2
Max Cross Slide Travel 55mm
Max Compoud Slide Travel 75mm
Max Carriage Travel 776mm
DC Motor 220V  750W
N/W  G/W 90kg/95kg
Packing Size 1300*450*450 mm

Model Specifications Parameters
WM210V-G (Brush motor)
(Brushless motor)
Swing Over Bed 210 mm
Swing Over Cross Slide 140 mm
Distance Between Centers 400 mm
Width of Bed 100 mm
Spindle Bore 21 mm
Spindle Taper MT3
Number of Spindle Speeds Variable
Range of Spindle Speeds 50-2500 rpm
Number of Metric Threads 10
Range of Metric Threads 0.5-3 mm
Number of Imperial Threads 8
Range of Imperial Threads 8-44 T.P.I
Range of Longitudinal Feed 0.08-0.15mm/R
Tool Post Type 4
Tailstock Taper MT2
Max Cross Slide Travel 55mm
Max Compoud Slide Travel 75mm
Max Carriage Travel 366mm
DC Motor 220V  550W
N/W  G/W 80kg/85kg
Packing Size 900*450*450 mm

If need further information, pls feel free to contact us.





Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 5Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 6Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 7





Good Lathe WM210V-G Big Power Mini Metal Rotating Lathe 2500rpm 550W Motor Lathe Machine Manual 8

Q1:What is your MOQ?

MOQ is 1 pcs enough.

Q2: How long can I get the machines?
If we have stock, we will send you that day after you payed.

Q3: What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

Q4: Payment term?
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.

Q5: .How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 48 hrs upon registering your need.

Q6: If i can't know how to operate,can your engineer help me programme well on machine ?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into
U-disc of operation video to help you.
